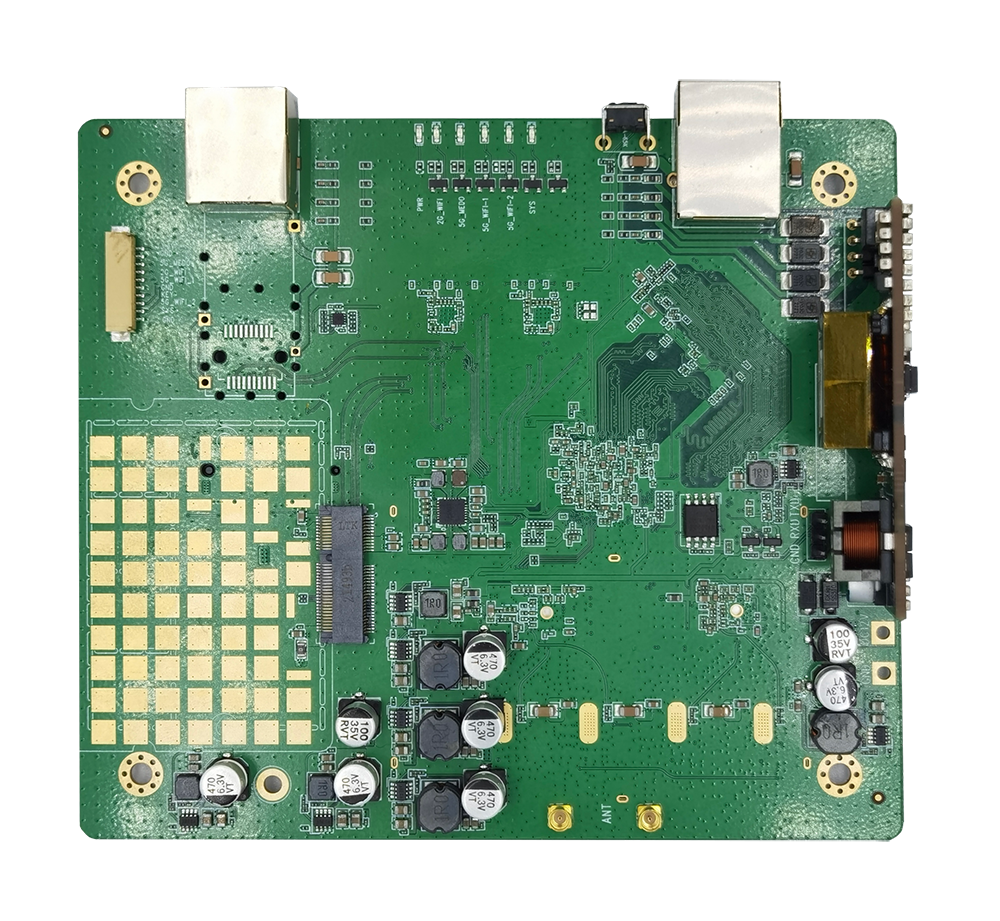

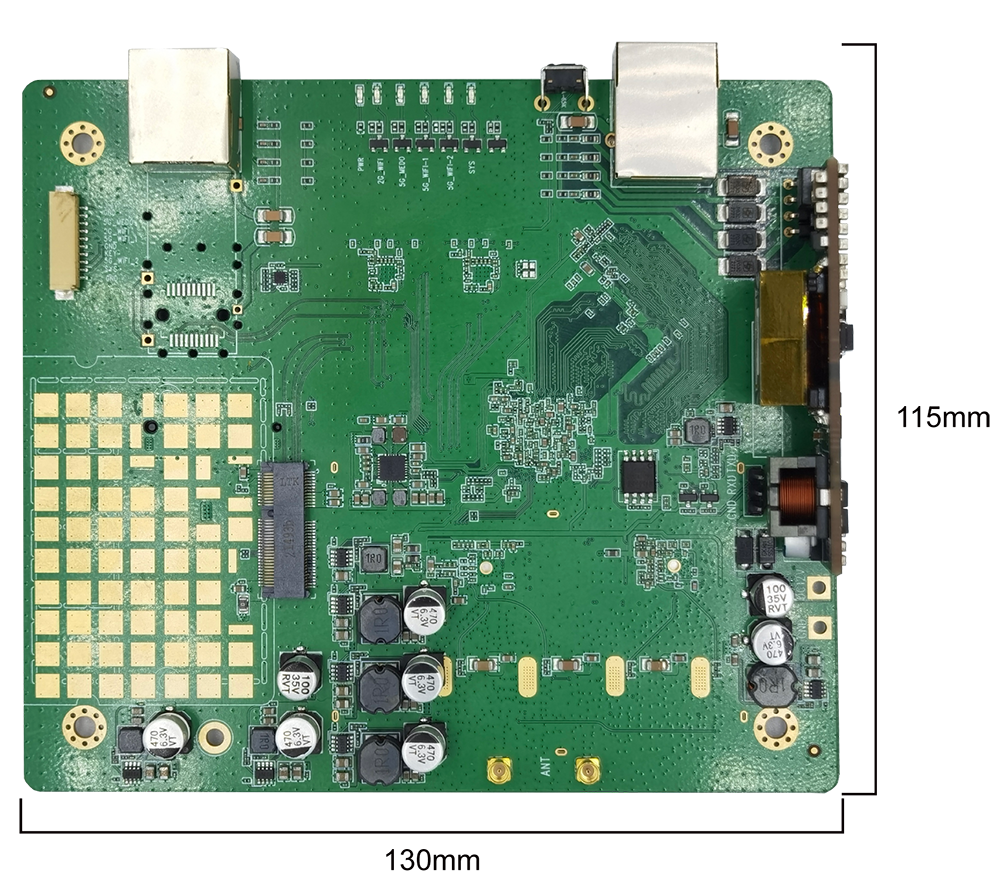

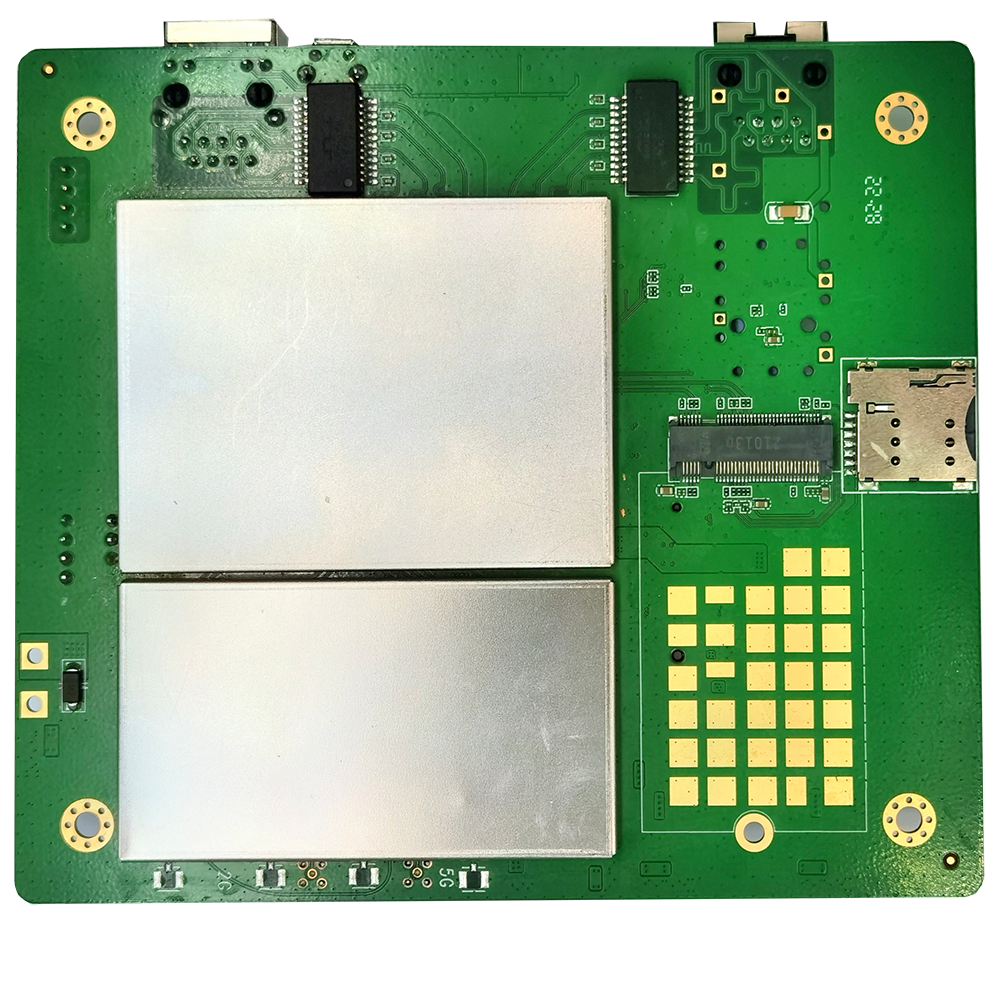

MX6022 WiFi6工業級無線接入點/無線覆蓋/人員定位/無縫漫游/無縫切換
產品類別： WiFi主板系列
MX-A6022-ME雙頻無線接入點，是一款支持IEEE 802.11a/b/g/n/ac/ax協議的雙頻無線AP，最高速率1773.5Mbps，支持無線定位功能，滿足智慧無線覆蓋需求；支持kvr無縫漫游技術，自動偵測并無縫切換，用戶可在網絡信號覆蓋范圍內，無感知漫游。本產品能夠為客戶提供穩定無線信號覆蓋，確保客戶享受穩定、高質量、便捷的無線網絡服務。
規格書 聯系碼訊 申請樣機
產品概述
MX6022 E雙頻無線接入點，是一款支持IEEE 802.11a/b/g/n/ac/ax協議的雙頻無線AP，最高速率1773.5Mbps，優化使用頻寬和上網速度；能夠支持AP/Client多種工作模式，滿足不同的應用需求。靈活適用于不同的網絡接入方案，支持無線定位功能，滿足智慧無線覆蓋需求；支持kvr無縫漫游技術，自動偵測并無縫切換，用戶可在網絡信號覆蓋范圍內，無感知漫游。本產品能夠為客戶提供穩定無線信號覆蓋，確保客戶享受穩定、高質量、便捷的無線網絡服務。
產品特征
- 產品采用IPQ6010+QCA8081+QCN5052+QCN5022方案構架
- 2.4GHz速率573.5Mbps，5.8GHz速率1200Mbps
- 支持接入點，客戶端，WDS接入點，WDS客戶端模式
- 支持2×2MIMO，雙頻合路MMCX接口
- 支持動態頻率選擇（DFS）
- 支持無線探針，配合定位引擎可實現人員定位功能
- 支持1024QAM調制，數據傳輸效率相比802.11ac提升25%
- 支持UART/UWB模塊/物聯網模塊/無線模塊/4G、5G模塊
- DDR3 4Gb，Nor Flash 128Mb，1Gb的NAND閃存
- 2.5G以太網WAN口，2.5G以太網LAN口
- WIFI單機功耗≤18W，擴展5G互聯網功耗≤25W；
- 支持AC 統一管理（硬件單獨購買）
射頻參數
| 速率 | 發射功率（單通道） | 發射功率（雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 2.4GHz 802.11b |
1Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| 2Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB | |
| 5.5Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| 11Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 2.4GHz 802.11g |
6Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 12Mbps | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| 2.4GHz 802.11n HT20 |
MCS 0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| 2.4GHz 802.11n HT40 |
MCS 0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| 2.4GHz 802.11ax HE20 |
MCS 0 | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS 8 | 19dBm | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS 9 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -69dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -66dBm | ±2dB | |
| 2.4GHz 802.11ax HE40 |
MCS 0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -75dBm | ±2dB | |
| MCS 8 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS 9 | 19dBm | 21dBm | ±2dB | -69dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -66dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -64dBm | ±2dB | |
| 5.8GHz 802.11a |
6Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| 12Mbps | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| 18Mbps | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| 24Mbps | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| 36Mbps | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| 48Mbps | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| 54Mbps | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| 5.8GHz 802.11n/ac VHT20 |
MCS 0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -89dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -75dBm | ±2dB | |
| 5.8GHz 802.11n/ac VHT40 |
MCS 0 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -82dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -79dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -76dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -73dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -70dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -67dBm | ±2dB | |
| 5.8GHz 802.11ac VHT80 |
MCS 0 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -75dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -73dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -70dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -67dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -64dBm | ±2dB | |
| 5.8GHz 802.11ax HET20 |
MCS 0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -77dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -74dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -71dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -68dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -65dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -62dBm | ±2dB | |
| 5.8GHz 802.11ax HE40 |
MCS 0 | 21dBm | 24dBm | ±2dB | -89dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -75dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -72dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -69dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -66dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -63dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -60dBm | ±2dB | |
| 5.8GHz 802.11ax HE80 |
MCS 0 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -79dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -76dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -74dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -71dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -68dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -65dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -62dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -59dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -56dBm | ±2dB |
環境條件
|
溫度 |
工作溫度： -20℃ ~ 70℃ 存儲溫度：-40℃ ~ 90℃ |
|
濕度 |
工作濕度：5% ~ 95% 存儲濕度：5% ~ 95% |
產品尺寸
